BEGA Special Tools

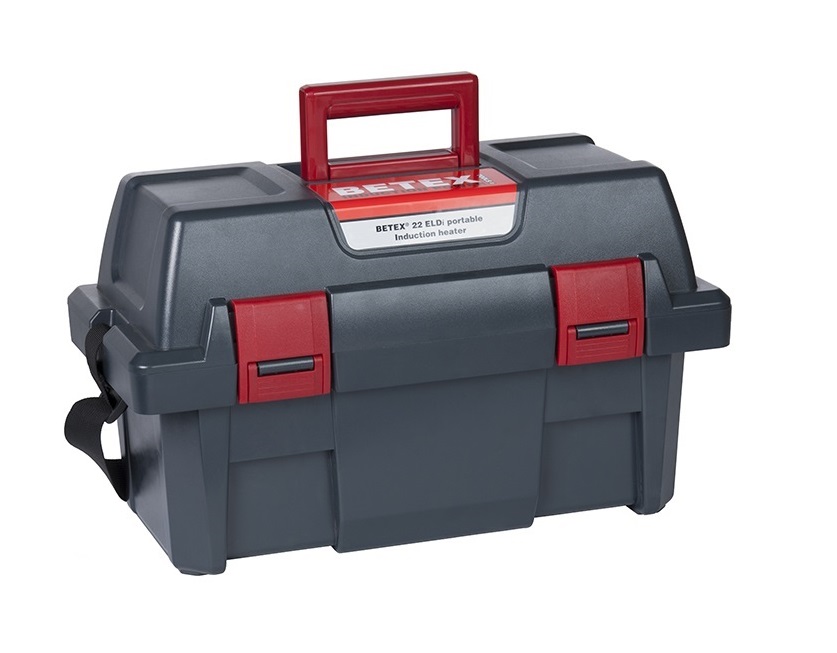

Betex Yoke Designed Portable Induction Heaters, 230V

230V Portable Induction Heaters are compact, highly effective and easy used thermal products ideal for use in workshop or on-site. Bearing dimensions of the heater include:

Min. inside diameter – 10 mm

Max. outside diameter – 240 mm

Max. width – 120 mm

Max. weight – 20 kg









MPN: 4200250-CE

Quantity

Request a quote

call_small Call: 1(866)577-4040

Specifications


max temp. range 0C 150
acoustic signal Yes
yokes 7, 10, 14, 20, 40
voltage/Amp 230V/10A
weight kg 21
magnetic probe 1
delta T No
frequency Hz 50-60
heating method temp. Yes
error message Yes
swing arm No
facility power standard 230V 2.3kVA

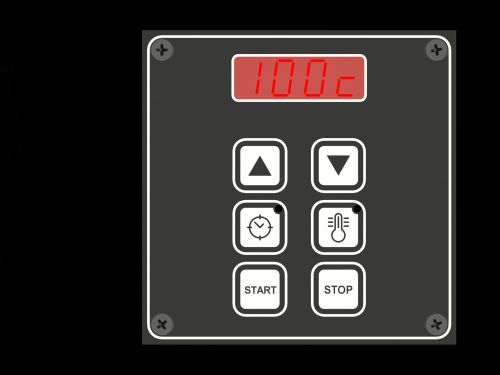

display Digital
Mpn 4200250-CE
max time range minutes 0-30
termal protection Yes
