Flange Bearings

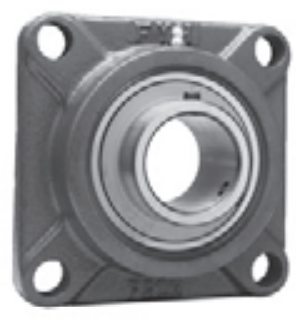

A Flange Bearing also known as a flange mounted bearing is an industrial bearing mounted in a cast iron flange that supports a shaft to run perpendicular to the bearing’s mounting surface.
There are many different types of flange bearings, all engineered for a specific application and all with different designs and cages, as well as load and performance capabilities. The main three flange bearing styles are round or square, four-bolt flange, and two-bolt flange. They are widely used for automated conveyors, belt drives, machine construction, the food industry, medical processing, etc.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.
If you have any questions write us via live chat, (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
Flange Bearings
A Flange Bearing also known as a flange mounted bearing is an industrial bearing mounted in a cast iron flange that supports a shaft to run perpendicular to the bearing’s mounting surface.
There are many different types of flange bearings, all engineered for a specific application and all with different designs and cages, as well as load and performance capabilities. The main three flange bearing styles are round or square, four-bolt flange, and two-bolt flange. They are widely used for automated conveyors, belt drives, machine construction, the food industry, medical processing, etc.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.
If you have any questions write us via live chat, (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
Bore Size
|
Distance Between Bolt Holes
|
Mounting Bolt Size
|
Number of Mount Holes
|
Weight
|
Price
|
Brand
|
Actions
|
|---|---|---|---|---|---|---|---|---|
| UCLF201-8 | 1/2 in | 2-1/8 in | 3/8 in | 4 Holes | 1.15 lb | Request a quote | AMI Bearings | |
|
UCLF201-8 RFQ
|
||||||||
| UCF201-8 | 1/2 in | 2-1/2 in | 3/8 in | 4 Holes | 1.41 lb | Request a quote | AMI Bearings | |
|
UCF201-8 RFQ
|
||||||||
| UCLF202-9 | 9/16 in | 2-1/8 in | 3/8 in | 4 Holes | 1.12 lb | Request a quote | AMI Bearings | |
|
UCLF202-9 RFQ
|
||||||||
| UCLF202-10 | 5/8 in | 2-1/8 in | 3/8 in | 4 Holes | 1.12 lb | Request a quote | AMI Bearings | |
|
UCLF202-10 RFQ
|
||||||||
| UCF202-10 | 5/8 in | 2-1/2 in | 3/8 in | 4 Holes | 1.37 lb | Request a quote | AMI Bearings | |
|
UCF202-10 RFQ
|
||||||||
| UCLF203-11 | 11/16 in | 2-1/8 in | 3/8 in | 4 Holes | 1.10 lb | Request a quote | AMI Bearings | |
|
UCLF203-11 RFQ
|
||||||||
| UCF203-11 | 11/16 in | 2-1/2 in | 3/8 in | 4 Holes | 1.34 lb | Request a quote | AMI Bearings | |
|
UCF203-11 RFQ
|
||||||||
| UCF204-12 | 3/4 in | 2-1/2 in | 3/8 in | 4 Holes | 1.30 lb | Request a quote | AMI Bearings | |
|
UCF204-12 RFQ
|
||||||||
| UCF205-14 | 7/8 in | 2-3/4 in | 7/16 in | 4 Holes | 1.81 lb | Request a quote | AMI Bearings | |
|
UCF205-14 RFQ
|
||||||||
| UCF205-15 | 15/16 in | 2-3/4 in | 7/16 in | 4 Holes | 1.81 lb | Request a quote | AMI Bearings | |
|
UCF205-15 RFQ
|
||||||||
| 3216FXT3 | 1 in | 3 57/64 in | 7/16 in | 2 Holes | 1.51 lb | Request a quote | Link Belt | |
|
3216FXT3 RFQ
|
||||||||
| UCF205-16 | 1 in | 2-3/4 in | 7/16 in | 4 Holes | 1.81 lb | Request a quote | AMI Bearings | |
|
UCF205-16 RFQ
|
||||||||
| UCF206-17 | 1-1/16 in | 3-1/4 in | 7/16 in | 4 Holes | 2.42 lb | Request a quote | AMI Bearings | |
|
UCF206-17 RFQ
|
||||||||
| UCF206-18 | 1-1/8 in | 3-1/4 in | 7/16 in | 4 Holes | 2.42 lb | Request a quote | AMI Bearings | |
|
UCF206-18 RFQ
|
||||||||
| UCF206-19 | 1-3/16 in | 3-1/4 in | 7/16 in | 4 Holes | 2.42 lb | Request a quote | AMI Bearings | |
|
UCF206-19 RFQ
|
||||||||
| UCF206-20 | 1-1/4 in | 3-1/4 in | 7/16 in | 4 Holes | 2.42 lb | Request a quote | AMI Bearings | |
|
UCF206-20 RFQ
|
||||||||
| UCF207-20 | 1-1/4 in | 3-5/8 in | 1/2 in | 4 Holes | 3.31 lb | Request a quote | AMI Bearings | |
|
UCF207-20 RFQ
|
||||||||
| UCF207-21 | 1-5/16 in | 3-5/8 in | 1/2 in | 4 Holes | 3.31 lb | Request a quote | AMI Bearings | |
|
UCF207-21 RFQ
|
||||||||
| UCF207-22 | 1-3/8 in | 3-5/8 in | 1/2 in | 4 Holes | 3.31 lb | Request a quote | AMI Bearings | |
|
UCF207-22 RFQ
|
||||||||
| UCF207-23 | 1-7/16 in | 3-5/8 in | 1/2 in | 4 Holes | 3.31 lb | Request a quote | AMI Bearings | |
|
UCF207-23 RFQ
|
||||||||
| UCF208-24 | 1-1/2 in | 4 in | 1/2 in | 4 Holes | 4.41 lb | Request a quote | AMI Bearings | |
|
UCF208-24 RFQ
|
||||||||
| UCF208-25 | 1-9/16 in | 4 in | 1/2 in | 4 Holes | 4.41 lb | Request a quote | AMI Bearings | |
|
UCF208-25 RFQ
|
||||||||
| UCF209-26 | 1-5/8 in | 4-1/8 in | 9/16 in | 4 Holes | 5.29 lb | Request a quote | AMI Bearings | |
|
UCF209-26 RFQ
|
||||||||
| UCF209-27 | 1-11/16 in | 4-1/8 in | 9/16 in | 4 Holes | 5.29 lb | Request a quote | AMI Bearings | |
|
UCF209-27 RFQ
|
||||||||
| UCF209-28 | 1-3/4 in | 4-1/8 in | 9/16 in | 4 Holes | 5.29 lb | Request a quote | AMI Bearings | |
|
UCF209-28 RFQ
|
||||||||
| UCF210-30 | 1-7/8 in | 4-3/8 in | 9/16 in | 4 Holes | 5.51 lb | Request a quote | AMI Bearings | |
|
UCF210-30 RFQ
|
||||||||
| UCF210-31 | 1-15/16 in | 4-3/8 in | 9/16 in | 4 Holes | 5.51 lb | Request a quote | AMI Bearings | |
|
UCF210-31 RFQ
|
||||||||
| 3222FT3 | 1.375 in | 3 5/8 in | 1/2 in | 4 Holes | 4.50 lb | Request a quote | Link Belt | |
|
3222FT3 RFQ
|
||||||||
| 3224FT3S | 1.5 in | 4 in | 1/2 in | 4 Holes | 5.12 lb | Request a quote | Link Belt | |
|
3224FT3S RFQ
|
||||||||
| F2224Z | 1.5 in | 4 in | 1/2 in | 4 Holes | 5.00 lb | Request a quote | Link Belt | |
|
F2224Z RFQ
|
||||||||
| 3224FXT3 | 1.5 in | 5 21/32 in | 1/2 in | 2 Holes | 4.60 lb | Request a quote | Link Belt | |
|
3224FXT3 RFQ
|
||||||||
| 3224FT3 | 1.5 in | 4 in | 1/2 in | 4 Holes | 5.09 lb | Request a quote | Link Belt | |
|
3224FT3 RFQ
|
||||||||
| 3227FT3S | 1.6875 in | 4 1/8 in | 1/2 in | 4 Holes | 5.64 lb | Request a quote | Link Belt | |
|
3227FT3S RFQ
|
||||||||
| UCF210-32 | 2 in | 4-3/8 in | 9/16 in | 4 Holes | 5.51 lb | Request a quote | AMI Bearings | |
|
UCF210-32 RFQ
|
||||||||
| UCF211-32 | 2 in | 5-1/8 in | 5/8 in | 4 Holes | 7.49 lb | Request a quote | AMI Bearings | |
|
UCF211-32 RFQ
|
||||||||
| UCF211-34 | 2-1/8 in | 5-1/8 in | 5/8 in | 4 Holes | 7.49 lb | Request a quote | AMI Bearings | |
|
UCF211-34 RFQ
|
||||||||
| UCF211-35 | 2-3/16 in | 5-1/8 in | 5/8 in | 4 Holes | 7.49 lb | Request a quote | AMI Bearings | |
|
UCF211-35 RFQ
|
||||||||
| UCF212-36 | 2-1/4 in | 5-5/8 in | 5/8 in | 4 Holes | 10.14 lb | Request a quote | AMI Bearings | |
|
UCF212-36 RFQ
|
||||||||
| UCF212-38 | 2-3/8 in | 5-5/8 in | 5/8 in | 4 Holes | 10.14 lb | Request a quote | AMI Bearings | |
|
UCF212-38 RFQ
|
||||||||
| UCF212-39 | 2-7/16 in | 5-5/8 in | 5/8 in | 4 Holes | 10.14 lb | Request a quote | AMI Bearings | |
|
UCF212-39 RFQ
|
||||||||
| UCF215-47 | 2-15/16 in | 6 in | 3/4 in | 4 Holes | 15.21 lb | Request a quote | AMI Bearings | |
|
UCF215-47 RFQ
|
||||||||
| UCF213-40 | 2-1/2 in | 5-7/8 in | 5/8 in | 4 Holes | 12.12 lb | Request a quote | AMI Bearings | |
|
UCF213-40 RFQ
|
||||||||
| UCF214-43 | 2-11/16 in | 5-7/8 in | 5/8 in | 4 Holes | 13.44 lb | Request a quote | AMI Bearings | |
|
UCF214-43 RFQ
|
||||||||
| UCF214-44 | 2-3/4 in | 5-7/8 in | 5/8 in | 4 Holes | 13.44 lb | Request a quote | AMI Bearings | |
|
UCF214-44 RFQ
|
||||||||
| 3236FT3S | 2.25 in | 5 5/8 in | 5/8 in | 4 Holes | 13.26 lb | Request a quote | Link Belt | |
|
3236FT3S RFQ
|
||||||||
| 3239FT3S | 2.4375 in | 5 5/8 in | 5/8 in | 4 Holes | 13.10 lb | Request a quote | Link Belt | |
|
3239FT3S RFQ
|
||||||||
| 3244FT3S | 2.75 in | 6 in | 3/4 in | 4 Holes | 17.65 lb | Request a quote | Link Belt | |
|
3244FT3S RFQ
|
||||||||
| UCF217-52 | 3-1/4 in | 6-7/8 in | 7/8 in | 4 Holes | 20.50 lb | Request a quote | AMI Bearings | |
|
UCF217-52 RFQ
|
||||||||
| UCF217-55 | 3-7/16 in | 6-7/8 in | 7/8 in | 4 Holes | 20.50 lb | Request a quote | AMI Bearings | |
|
UCF217-55 RFQ
|
||||||||
| UCF218-56 | 3-1/2 in | 7-3/8 in | 7/8 in | 4 Holes | 24.91 lb | Request a quote | AMI Bearings | |
|
UCF218-56 RFQ
|
||||||||
