RINGSPANN Star Discs

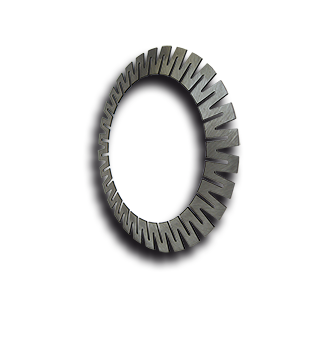

Star Discs are flat-bevelled rings which are slotted on the outside and inside. An external axial actuating force is translated by the Star Disc into a much higher radial force.This force creates a frictional connection between the Star Disc, shaft and hub.
Star discs are generally installed in multiple arrangements as a disc pack. It helps to adjust the transmissible torque to the specific application requirements.
Star Disc shaft hub connections are suitable where frequent clamping and release are required, such as in adjustment devices.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
RINGSPANN Star Discs
Star Discs are flat-bevelled rings which are slotted on the outside and inside. An external axial actuating force is translated by the Star Disc into a much higher radial force.This force creates a frictional connection between the Star Disc, shaft and hub.
Star discs are generally installed in multiple arrangements as a disc pack. It helps to adjust the transmissible torque to the specific application requirements.
Star Disc shaft hub connections are suitable where frequent clamping and release are required, such as in adjustment devices.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
Inner Diameter
|
Outer Diameter
|
Transmissible Torque
|
Contact Pressure at Shaft
|
Contact Pressure at Hub
|
Price
|
Actions
|
|---|---|---|---|---|---|---|---|
| 1032-014002-000000 | 4 mm | 14 mm | 0.16 Nm | 100 N/mm2 | 29 N/mm2 | Request a quote | |
|
1032-014002-000000 RFQ
|
|||||||
| 1032-014003-000000 | 5 mm | 14 mm | 0.29 Nm | 116 N/mm2 | 41 N/mm2 | Request a quote | |
|
1032-014003-000000 RFQ
|
|||||||
| 1032-018001-000000 | 6 mm | 18 mm | 0.34 Nm | 94 N/mm2 | 31 N/mm2 | Request a quote | |
|
1032-018001-000000 RFQ
|
|||||||
| 1032-018003-000000 | 8 mm | 18 mm | 0.72 Nm | 113 N/mm2 | 50 N/mm2 | Request a quote | |
|
1032-018003-000000 RFQ
|
|||||||
| 1032-022002-000000 | 10 mm | 22 mm | 1.26 Nm | 105 N/mm2 | 48 N/mm2 | Request a quote | |
|
1032-022002-000000 RFQ
|
|||||||
| 1032-022003-000000 | 11 mm | 22 mm | 1.53 Nm | 105 N/mm2 | 53 N/mm2 | Request a quote | |
|
1032-022003-000000 RFQ
|
|||||||
| 1032-027001-000000 | 12 mm | 27 mm | 1.95 Nm | 104 N/mm2 | 46 N/mm2 | Request a quote | |
|
1032-027001-000000 RFQ
|
|||||||
| 1032-027003-000000 | 14 mm | 27 mm | 2.8 Nm | 110 N/mm2 | 57 N/mm2 | Request a quote | |
|
1032-027003-000000 RFQ
|
|||||||
| 1032-027004-000000 | 15 mm | 27 mm | 3.3 Nm | 113 N/mm2 | 63 N/mm2 | Request a quote | |
|
1032-027004-000000 RFQ
|
|||||||
| 1032-037001-000000 | 16 mm | 37 mm | 5.1 Nm | 111 N/mm2 | 48 N/mm2 | Request a quote | |
|
1032-037001-000000 RFQ
|
|||||||
| 1032-037002-000000 | 17 mm | 37 mm | 5.9 Nm | 113 N/mm2 | 52 N/mm2 | Request a quote | |
|
1032-037002-000000 RFQ
|
|||||||
| 1032-037003-000000 | 18 mm | 37 mm | 6.8 Nm | 117 N/mm2 | 57 N/mm2 | Request a quote | |
|
1032-037003-000000 RFQ
|
|||||||
| 1032-037004-000000 | 20 mm | 37 mm | 8.7 Nm | 121 N/mm2 | 65 N/mm2 | Request a quote | |
|
1032-037004-000000 RFQ
|
|||||||
| 1032-042001-000000 | 22 mm | 42 mm | 9.9 Nm | 114 N/mm2 | 60 N/mm2 | Request a quote | |
|
1032-042001-000000 RFQ
|
|||||||
| 1032-042002-000000 | 24 mm | 42 mm | 12.2 Nm | 118 N/mm2 | 67 N/mm2 | Request a quote | |
|
1032-042002-000000 RFQ
|
|||||||
| 1032-042003-000000 | 25 mm | 42 mm | 13.5 Nm | 120 N/mm2 | 71 N/mm2 | Request a quote | |
|
1032-042003-000000 RFQ
|
|||||||
| 1032-052001-000000 | 28 mm | 52 mm | 21 Nm | 116 N/mm2 | 63 N/mm2 | Request a quote | |
|
1032-052001-000000 RFQ
|
|||||||
| 1032-052002-000000 | 30 mm | 52 mm | 25 Nm | 121 N/mm2 | 70 N/mm2 | Request a quote | |
|
1032-052002-000000 RFQ
|
|||||||
| 1032-052004-000000 | 35 mm | 52 mm | 33.5 Nm | 119 N/mm2 | 80 N/mm2 | Request a quote | |
|
1032-052004-000000 RFQ
|
|||||||
| 1032-062001-000000 | 38 mm | 62 mm | 40.5 Nm | 122 N/mm2 | 75 N/mm2 | Request a quote | |
|
1032-062001-000000 RFQ
|
|||||||
| 1032-062002-000000 | 40 mm | 62 mm | 45.5 Nm | 124 N/mm2 | 80 N/mm2 | Request a quote | |
|
1032-062002-000000 RFQ
|
|||||||
| 1032-062003-000000 | 42 mm | 62 mm | 51 Nm | 126 N/mm2 | 85 N/mm2 | Request a quote | |
|
1032-062003-000000 RFQ
|
|||||||
| 1032-062004-000000 | 45 mm | 62 mm | 60 Nm | 129 N/mm2 | 94 N/mm2 | Request a quote | |
|
1032-062004-000000 RFQ
|
|||||||
| 1032-070001-000000 | 48 mm | 70 mm | 68 Nm | 128 N/mm2 | 88 N/mm2 | Request a quote | |
|
1032-070001-000000 RFQ
|
|||||||
| 1032-070002-000000 | 50 mm | 70 mm | 75 Nm | 130 N/mm2 | 93 N/mm2 | Request a quote | |
|
1032-070002-000000 RFQ
|
|||||||
| 1032-070003-000000 | 55 mm | 70 mm | 93 Nm | 134 N/mm2 | 105 N/mm2 | Request a quote | |
|
1032-070003-000000 RFQ
|
|||||||
| 1032-080001-000000 | 60 mm | 80 mm | 112 Nm | 135 N/mm2 | 101 N/mm2 | Request a quote | |
|
1032-080001-000000 RFQ
|
|||||||
| 1032-090001-000000 | 65 mm | 90 mm | 131 Nm | 135 N/mm2 | 97 N/mm2 | Request a quote | |
|
1032-090001-000000 RFQ
|
|||||||
| 1032-090002-000000 | 70 mm | 90 mm | 154 Nm | 137 N/mm2 | 106 N/mm2 | Request a quote | |
|
1032-090002-000000 RFQ
|
|||||||
| 1032-100001-000000 | 75 mm | 100 mm | 176 Nm | 136 N/mm2 | 102 N/mm2 | Request a quote | |
|
1032-100001-000000 RFQ
|
|||||||
| 1032-100002-000000 | 80 mm | 100 mm | 205 Nm | 139 N/mm2 | 111 N/mm2 | Request a quote | |
|
1032-100002-000000 RFQ
|
|||||||
| 1032-110001-000000 | 85 mm | 110 mm | 230 Nm | 138 N/mm2 | 107 N/mm2 | Request a quote | |
|
1032-110001-000000 RFQ
|
|||||||
| 1032-120001-000000 | 100 mm | 120 mm | 325 Nm | 141 N/mm2 | 118 N/mm2 | Request a quote | |
|
1032-120001-000000 RFQ
|
|||||||
