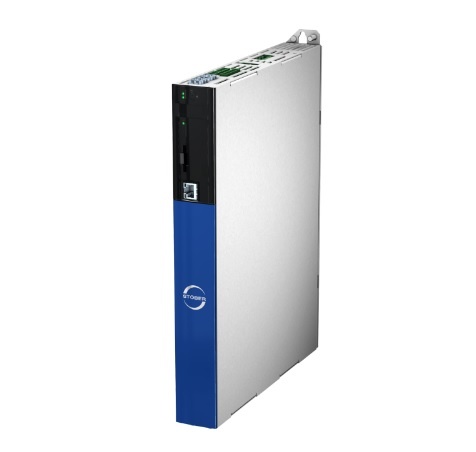

SC6 Series Servo Drive Controller

The youngest in the series: The stand-alone SC6 drive controller. Due to its integrated power supply and slim design, it enables cost-effective application concepts.

The SC6 series is ideal for combination with the innovative Stober Lean motor – for example, for energy-efficient transport systems. Another benefit is that the Lean motor and SC6 run entirely without an encoder!

Technical Data

• Nominal output current (4 kHz): 5 – 50 A

• Max. output current (4 kHz): 10.5 – 105 A

• Nominal output current (8 kHz): 4.5 – 40 A

• Max. output current (8 kHz): 11.3 – 100 A

Features

• Operating motors:

  • Lean motors of the LM series

  • Synchronous servo motors of the EZ.

  • Asynchronous motors of the IE3D series

• Encoder interfaces:

  • EnDat 3

  • EnDat 2.1/2.2 digital

  • Incremental

  • SSI

  • Resolver

  • Pulse/direction signals

• Controllable brake: 24 V_DCbrake

• Fieldbus connection: Integrated EtherCAT or PROFINET communication

• Safety technology: STO via terminals or STO and SS1 via FSoE: SIL 3, PL e (Cat. 4)

• Commissioning: All functions to use the drive controller efficiently are provided by the DriveControlSuite DS6 project planning and commissioning software; the program uses wizards to guide you step by step through the entire project planning and parameterization process

• Special features:

  • One Cable Solution (OCS)

  • Automatic motor parameterization via the electronic motor nameplate

  • Energy supply via a flexible Quick DC-Link connection for multi-axis applications

  • Single-ended nominal power consumption on double-axis controllers for the operation of motors with different power

  • Cycle times from 250 µs on up

• Marks and test symbols: CE, UL, cUL (CSA-UL)
