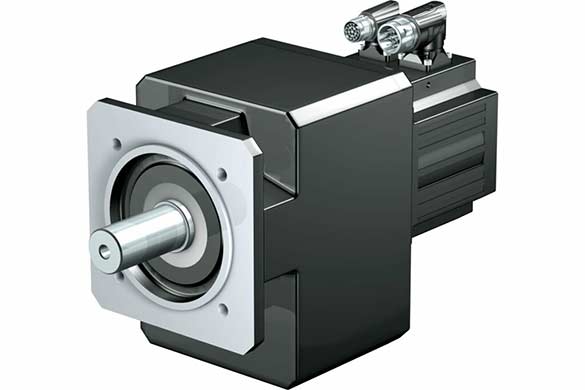

Helical Servo Geared Motors

The helical gear units are compact and available in a wide variety of housing designs – with a pitch circle diameter, a round or square flange, or even a foot – so they are ideal for a wide range of applications. STOBER Helical servo geared motor connected directly to EZ motor results in a very compact and exceptionally dynamic synchronous servo geared motor with high torsional stiffness and high volume performance.

Technical Data

• Total ratio: 2 – 270

• Allowed acceleration torque: 9.7 – 6500 Nm

• Backlash: 10 – 20 arcmin

• Efficiency: 96 – 97%

Features

• Shaft: Solid shaft without feather key

• Forced ventilation unit: For increasing torque and continuous power or at higher ambient temperatures; also as a retrofit kit

• Brake: Optional permanent magnet holding brake on the motor’s B side

• Power interface: Twist-on plug connectors with quick lock; optional mating connectors

• Encoder interfaces:

  • EnDat® 3

  • EnDat® 2.1/2.2 single-turn, multi-turn

  • One Cable Solution (OCS)

  • Resolver

• Winding protection: PTC thermistors guarantee thermal winding protection

• Paint: RAL 9005 Jet black

• Marks and test symbols: CE and cURus

• Recommended drive controllers or inverters: Exceptionally efficient in combination with STOBER drive controllers of the SI6 or SD6 series or the SDS 5000 servo inverter

• Housing:

  • Pitch circle diameter

  • Round or square flange

  • Foot

• Mounting position: Any

• Lubricants and maintenance:

  • Mineral lubricant CLP ISO VG 220 or synthetic lubricant CLP HC ISO VG 220

  • Lubricated for life and maintenance-free

• Paint: RAL 9005 Jet black

• Motor adapter:

  • EasyAdapt (ME) with clamp coupling

  • ServoStop (MB) with plug-in coupling (jaw coupling) and integrated spring-loaded brake

• Recommended motor for direct attachment: Particularly efficient in combination with a STOBER EZ series motor
