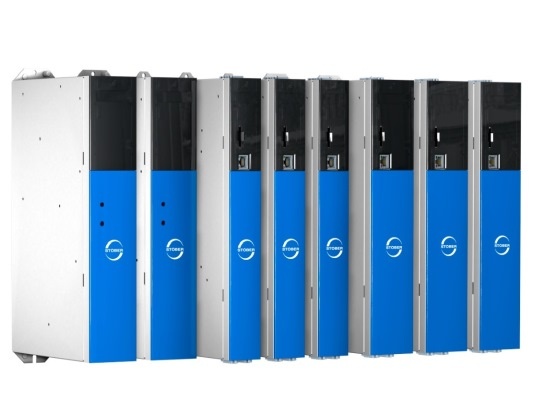

Servo Drive Controller SI6 Series

SI6 Series Servo Drive Controller

The most striking feature is its highly compact design! With a width of only 45 mm, the SI6 requires extremely little space in the control cabinet.

Each SI6 is connected to a central PS6 supply module. Additional fuses and cabling for each axis are not required. This reduces the space and costs.

The STOBER SI6 drive controller also offers a lot of acceleration: Together with an EZ series synchronous servo motor, it can go from 0 to 3000 rpm in 10 ms.

Technical Data

  • Nominal output current (4 kHz): 5 – 50 A

  • Max. output current (4 kHz): 10.5 – 105 A

  • Nominal output current (8 kHz): 4.5 – 40 A

  • Max. output current (8 kHz): 11.3 – 100 A

Features

  • Operating motors:
    • Lean motors of the LM series
    • Synchronous servo motors of the EZ.
    • Asynchronous motors of the IE3D series
  • Encoder interfaces:
    • EnDat® 3
    • EnDat® 2.1/2.2 digital
    • Incremental
    • SSI
    • Resolver
    • Pulse/direction signals
  • Controllable brake: 24 VDCbrake
  • Fieldbus connection: Integrated EtherCAT® or PROFINET® communication
  • Safety technology: STO via terminals or STO and SS1 via FSoE: SIL 3, PL e (Cat. 4)
  • Commissioning: All functions to use the drive controller efficiently are provided by the DriveControlSuite DS6 project planning and commissioning software; the program uses wizards to guide you step by step through the entire project planning and parameterization process
  • Special features:
    • One Cable Solution (OCS)
    • Automatic motor parameterization via the electronic motor nameplate
    • Energy supply via a flexible Quick DC-Link connection for multi-axis applications
    • Single-ended nominal power consumption on double-axis controllers for the operation of motors with different power
    • Cycle times from 250 µs on up
  • Marks and test symbols: CE, UL, cUL (CSA-UL)
