CJM Bi-Directional One-Way Clutch MTL

The MLT series of Bi-Directional One Way Clutch permits the transmission of torque from the input shaft to the output shaft in either rotational direction. They are designed for multiple functional requirements and can easily integrate with other CJM clutches, brakes, or torque limiters. This unit combines components, producing a lighter, more streamlined design.

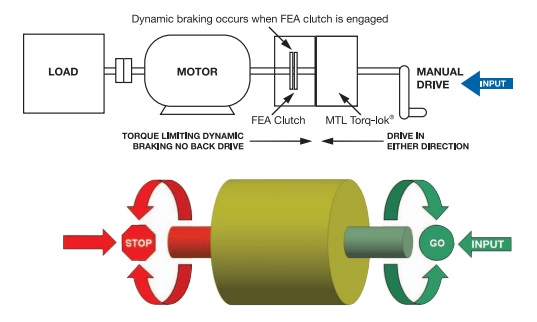

By incorporating an MTL bi-directional one-way clutch with a Carlyle Johnson spring-applied clutch, we can offer braking, torque limiting, and manual driving with no back drive.

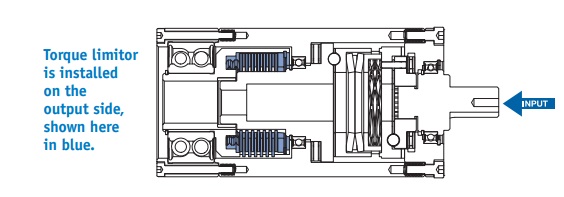

Another standard option is to incorporate a Carlyle Johnson torque limiter on either the input or output side. A customer would add this on the input side if there were a desire to limit input driving torque. On the output side, it would act as a mechanical fuse to allow the constrained component to slip should an excessive load condition occur.

 Product Operation

• Torque range 15 lb. ft.- 120 lb. ft.

• Self-locking

• Smooth rotation at the driving end, regardless of the direction of the load.

• Unique friction disc/ball ramp design establishes locking torque.

Torque-Lock-One-Way-Bi-Directional-Clutch
