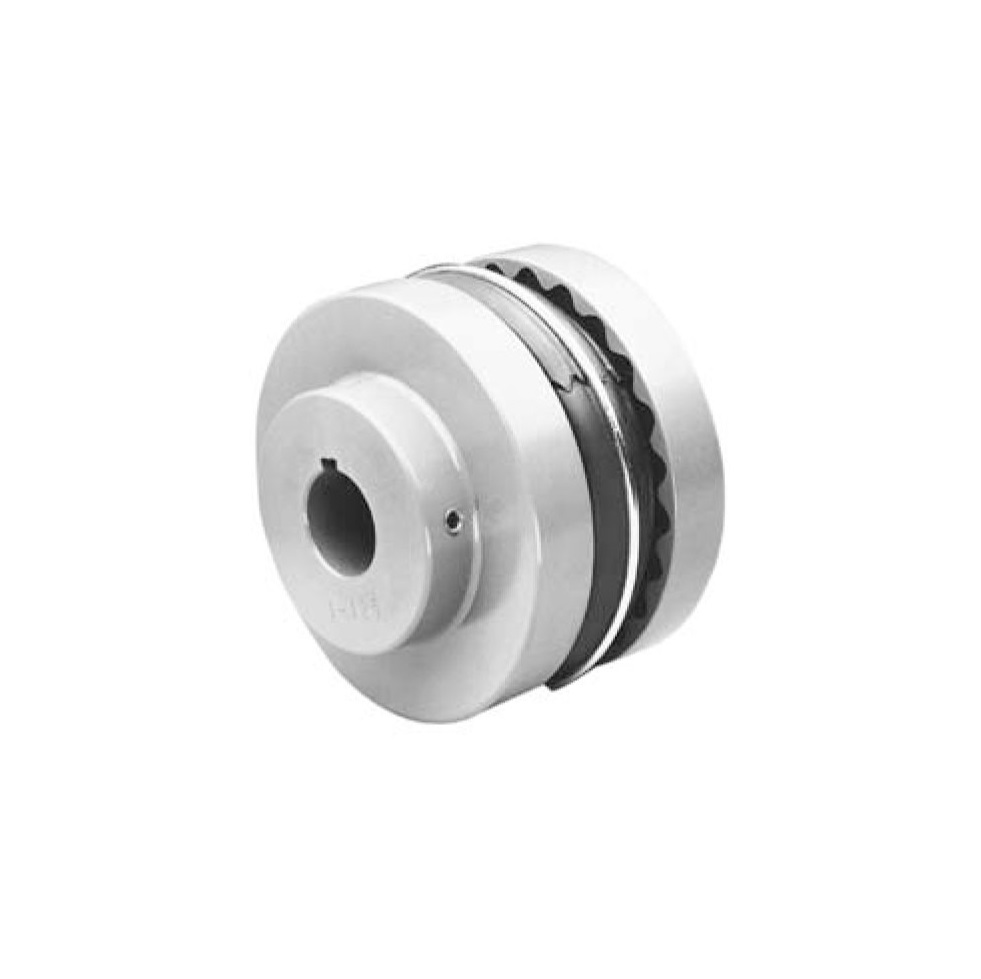

Lovejoy S-Flex Endurance Couplings
The straightforward design of the S-Flex Endurance coupling ensures simplicity in both assembly and dependable performance. Specialized tools are unnecessary for installation or removal, making it a hassle-free process. These couplings are versatile and can be applied across a wide range of scenarios.
The S-Flex Endurance coupling is constructed from three main components. It consists of two flanges with internal teeth that engage with an elastomeric flexible sleeve featuring external teeth. Each flange attaches to its respective driver and driven shaft, and torque transmission occurs through the flanges via the sleeve. The coupling effectively absorbs misalignment and torsional shock loads by means of shear deflection within the sleeve. This shear property of the S-Flex Endurance coupling is particularly well-suited to dampen impact loads.
S Flex Endurance Couplings Catalog
HVH Industrial Solutions is an authorized distributor of LoveJoy.
We work closely with the LoveJoy engineering team to provide superior customer service and engineering support.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
Lovejoy S-Flex Endurance Couplings
The straightforward design of the S-Flex Endurance coupling ensures simplicity in both assembly and dependable performance. Specialized tools are unnecessary for installation or removal, making it a hassle-free process. These couplings are versatile and can be applied across a wide range of scenarios.
The S-Flex Endurance coupling is constructed from three main components. It consists of two flanges with internal teeth that engage with an elastomeric flexible sleeve featuring external teeth. Each flange attaches to its respective driver and driven shaft, and torque transmission occurs through the flanges via the sleeve. The coupling effectively absorbs misalignment and torsional shock loads by means of shear deflection within the sleeve. This shear property of the S-Flex Endurance coupling is particularly well-suited to dampen impact loads.
S Flex Endurance Couplings Catalog
HVH Industrial Solutions is an authorized distributor of LoveJoy.
We work closely with the LoveJoy engineering team to provide superior customer service and engineering support.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
bore size
|
coupling size
|
keyway size w x d
|
Price
|
Actions
|
|---|---|---|---|---|---|
| 68514436067 | 1/2 in | 5S | 1/8 x 1/16 in | $41.20 |
|
|
68514436067 $41.20
|
|||||
| 68514436068 | 5/8 in | 5S | 3/16 x 3/32 in | $41.20 |
|
|
68514436068 $41.20
|
|||||
| 68514436093 | 5/8 in | 6S | 3/16 x 3/32 in | $53.60 |
|
|
68514436093 $53.60
|
|||||
| 68514436069 | 3/4 in | 5S | 3/16 x 3/32 in | $41.20 |
|
|
68514436069 $41.20
|
|||||
| 68514436094 | 3/4 in | 6S | 3/16 x 3/32 in | $53.60 |
|
|
68514436094 $53.60
|
|||||
| 68514436132 | 3/4 in | 8S | 3/16 x 3/32 in | $82.40 |
|
|
68514436132 $82.40
|
|||||
| 68514436070 | 13/16 in | 5S | 3/16 x 3/32 in | $41.20 |
|
|
68514436070 $41.20
|
|||||
| 68514436071 | 7/8 in | 5S | 3/16 x 3/32 in | $41.20 |
|
|
68514436071 $41.20
|
|||||
| 68514436095 | 7/8 in | 6S | 3/16 x 3/32 in | $53.60 |
|
|
68514436095 $53.60
|
|||||
| 68514436133 | 7/8 in | 8S | 3/16 x 3/32 in | $82.40 |
|
|
68514436133 $82.40
|
|||||
| 68514436151 | 7/8 in | 9S | 3/16 x 3/32 in | $123.60 |
|
|
68514436151 $123.60
|
|||||
| 68514436072 | 15/16 in | 5S | 1/4 x 1/8 in | $41.20 |
|
|
68514436072 $41.20
|
|||||
| 68514436096 | 15/16 in | 6S | 1/4 x 1/8 in | $53.60 |
|
|
68514436096 $53.60
|
|||||
| 68514436134 | 15/16 in | 8S | 1/4 x 1/8 in | $82.40 |
|
|
68514436134 $82.40
|
|||||
| 68514444363 | 15/16 in | 9S | 1/4 x 1/8 in | $123.60 |
|
|
68514444363 $123.60
|
|||||
| 68514436073 | 1 in | 5S | 1/4 x 1/8 in | $41.20 |
|
|
68514436073 $41.20
|
|||||
| 68514436074 | 1 1/16 in | 5S | 1/4 x 1/8 in | $41.20 |
|
|
68514436074 $41.20
|
|||||
| 68514436077 | 1 1/4 in | 5S | 1/4 x 1/8 in | $41.20 |
|
|
68514436077 $41.20
|
|||||
| 68514436075 | 1 1/8 in | 5S | 1/4 x 1/8 in | $41.20 |
|
|
68514436075 $41.20
|
|||||
| 68514436076 | 1 3/16 in | 5S | 1/4 x 1/8 in | $41.20 |
|
|
68514436076 $41.20
|
|||||
| 68514436097 | 1 in | 6S | 1/4 x 1/8 in | $53.60 |
|
|
68514436097 $53.60
|
|||||
| 68514436098 | 1 1/16 in | 6S | 1/4 x 1/8 in | $53.60 |
|
|
68514436098 $53.60
|
|||||
| 68514436101 | 1 1/4 in | 6S | 1/4 x 1/8 in | $53.60 |
|
|
68514436101 $53.60
|
|||||
| 68514436099 | 1 1/8 in | 6S | 1/4 x 1/8 in | $53.60 |
|
|
68514436099 $53.60
|
|||||
| 68514436100 | 1 3/16 in | 6S | 1/4 x 1/8 in | $53.60 |
|
|
68514436100 $53.60
|
|||||
| 68514436105 | 1 1/2 in | 6S | 3/8 x 1/8 in | $53.60 |
|
|
68514436105 $53.60
|
|||||
| 68514436106 | 1 5/8 in | 6S | 3/8 x 1/8 in | $53.60 |
|
|
68514436106 $53.60
|
|||||
| 68514436107 | 1 3/4 in | 6S | 3/8 x 3/16 in | $53.60 |
|
|
68514436107 $53.60
|
|||||
| 68514436104 | 1 7/16 in | 6S | 3/8 x 3/16 in | $53.60 |
|
|
68514436104 $53.60
|
|||||
| 68514436131 | 1 7/8 in | 7S | 1/2 x 1/8 in | $61.80 |
|
|
68514436131 $61.80
|
|||||
| 68514436120 | 1 in | 7S | 1/4 x 1/8 in | $61.80 |
|
|
68514436120 $61.80
|
|||||
| 68514436121 | 1 1/16 in | 7S | 1/4 x 1/8 in | $61.80 |
|
|
68514436121 $61.80
|
|||||
| 68514436127 | 1 7/16 in | 7S | 3/8 x 3/16 in | $61.80 |
|
|
68514436127 $61.80
|
|||||
| 68514436146 | 1 7/8 in | 8S | 1/2 x 1/4 in | $82.40 |
|
|
68514436146 $82.40
|
|||||
| 68514436135 | 1 in | 8S | 1/4 x 1/8 in | $82.40 |
|
|
68514436135 $82.40
|
|||||
| 68514444364 | 1 1/16 in | 8S | 1/4 x 1/8 in | $82.40 |
|
|
68514444364 $82.40
|
|||||
| 68514436138 | 1 1/4 in | 8S | 1/4 x 1/8 in | $82.40 |
|
|
68514436138 $82.40
|
|||||
| 68514436136 | 1 1/8 in | 8S | 1/4 x 1/8 in | $82.40 |
|
|
68514436136 $82.40
|
|||||
| 68514436142 | 1 1/2 in | 8S | 3/8 x 3/16 in | $82.40 |
|
|
68514436142 $82.40
|
|||||
| 68514436144 | 1 11/16 in | 8S | 3/8 x 3/16 in | $82.40 |
|
|
68514436144 $82.40
|
|||||
| 68514436145 | 1 3/4 in | 8S | 3/8 x 3/16 in | $82.40 |
|
|
68514436145 $82.40
|
|||||
| 68514436143 | 1 5/8 in | 8S | 3/8 x 3/16 in | $82.40 |
|
|
68514436143 $82.40
|
|||||
| 68514436141 | 1 7/16 in | 8S | 3/8 x 3/16 in | $82.40 |
|
|
68514436141 $82.40
|
|||||
| 68514436140 | 1 3/8 in | 8S | 5/16 x 5/32 in | $82.40 |
|
|
68514436140 $82.40
|
|||||
| 68514436139 | 1 5/16 in | 8S | 5/16 x 5/32 in | $82.40 |
|
|
68514436139 $82.40
|
|||||
| 68514436163 | 1 15/16 in | 9S | 1/2 x 1/4 in | $123.60 |
|
|
68514436163 $123.60
|
|||||
| 68514436162 | 1 7/8 in | 9S | 1/2 x 1/4 in | $123.60 |
|
|
68514436162 $123.60
|
|||||
| 68514436152 | 1 in | 9S | 1/4 x 1/8 in | $123.60 |
|
|
68514436152 $123.60
|
|||||
| 68514445742 | 1 1/16 in | 9S | 1/4 x 1/8 in | $123.60 |
|
|
68514445742 $123.60
|
|||||
| 68514436154 | 1 1/4 in | 9S | 1/4 x 1/8 in | $123.60 |
|
|
68514436154 $123.60
|
|||||
