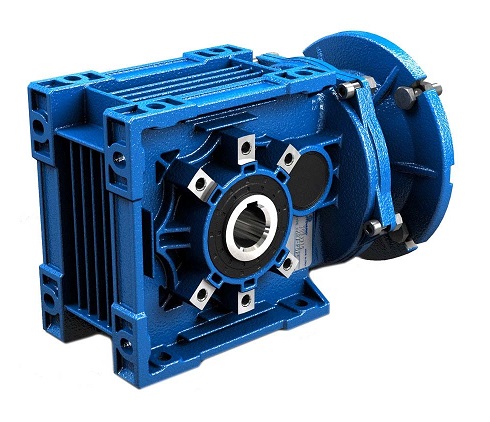

Motovario Right Angle Helical Bevel Gear Reducers BA
BA series of right-angle helical bevel gear reducers allow for an excellent performance/lifespan ratio. These highly versatile gear units are widely used in various industrial and civil applications. They offer an excellent output/weight ratio value, especially considering they need minimal service.
These helical gear reducers are available with the following versions: BA - fitted for motor coupling, IBA - with input shaft, and CBA - with the compact motor.
Characteristics
-
Universal casing
-
Power up to 5,5 kW
-
Sizes: A40-A50-A70
-
Casing in die-cast aluminum alloy
-
Reduction ratios between 7,62 and 442,76
-
Gears hardened and tempered with shaved or ground profile
-
Torque max 450 Nm and admissible radial loads max 10.000 N
-
Load capacity calculated and verified according to ISO 6336 and AGMA 2001
-
Painted with RAL 5010 blue epoxy-polyester powder
-
Accessories: torque arm, output flange, output shaft, shrink disk, Viton oil seals.
