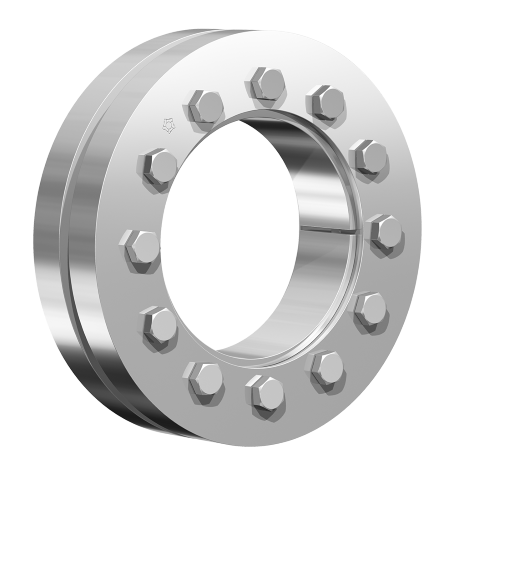

Ringfeder Standard Series Shrink Discs RfN 4071
The RfN 4071 series are the extended design of standard series of shrink discs for high torque, slit inner ring - low losses, and pressure on the hub.
They are cost-efficient solutions with high capacity in the largest possible range of applications. The preload force can be set targeted to the relevant application.
HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.
If you have any questions write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
1(866)577-4040
or
RfN-4071-340x570-260---HT | HT (Half type with threaded holes in thrust ring) | 408 | 260 | 570 | 156 | Ringfeder | Request a quote | |
RfN-4071-340x570-250---HT | HT (Half type with threaded holes in thrust ring) | 408 | 250 | 570 | 156 | Ringfeder | Request a quote | |
RfN-4071-320x520-260---HT | HT (Half type with threaded holes in thrust ring) | 386 | 260 | 520 | 142 | Ringfeder | Request a quote | |
RfN-4071-320x520-250---HT | HT (Half type with threaded holes in thrust ring) | 386 | 250 | 520 | 142 | Ringfeder | Request a quote | |
RfN-4071-300x485-240---HT | HT (Half type with threaded holes in thrust ring) | 364 | 240 | 485 | 142 | Ringfeder | Request a quote | |
RfN-4071-300x485-230---HT | HT (Half type with threaded holes in thrust ring) | 364 | 230 | 485 | 142 | Ringfeder | Request a quote | |
RfN-4071-280x460-230---HT | HT (Half type with threaded holes in thrust ring) | 346 | 230 | 460 | 134 | Ringfeder | Request a quote | |
RfN-4071-280x460-220---HT | HT (Half type with threaded holes in thrust ring) | 346 | 220 | 460 | 134 | Ringfeder | Request a quote | |
RfN-4071-280x460-210---HT | HT (Half type with threaded holes in thrust ring) | 346 | 210 | 460 | 134 | Ringfeder | Request a quote | |
RfN-4071-260x430-210---HT | HT (Half type with threaded holes in thrust ring) | 321 | 210 | 430 | 120 | Ringfeder | Request a quote | |
RfN-4071-260x430-200---HT | HT (Half type with threaded holes in thrust ring) | 321 | 200 | 430 | 120 | Ringfeder | Request a quote | |
RfN-4071-240x405-180---HT | HT (Half type with threaded holes in thrust ring) | 295 | 180 | 405 | 109 | Ringfeder | Request a quote | |
RfN-4071-240x405-170---HT | HT (Half type with threaded holes in thrust ring) | 295 | 170 | 405 | 109 | Ringfeder | Request a quote | |
RfN-4071-220x370-170---HT | HT (Half type with threaded holes in thrust ring) | 270 | 170 | 370 | 104 | Ringfeder | Request a quote | |
RfN-4071-220x370-165---HT | HT (Half type with threaded holes in thrust ring) | 270 | 165 | 370 | 104 | Ringfeder | Request a quote | |
RfN-4071-220x370-160---HT | HT (Half type with threaded holes in thrust ring) | 270 | 160 | 370 | 104 | Ringfeder | Request a quote | |
RfN-4071-320x520-240---HT | HT (Half type with threaded holes in thrust ring) | 386 | 240 | 520 | 142 | Ringfeder | Request a quote | |
RfN-4071-300x485-245---HT | HT (Half type with threaded holes in thrust ring) | 364 | 245 | 485 | 142 | Ringfeder | Request a quote | |
RfN-4071-260x430-190---HT | HT (Half type with threaded holes in thrust ring) | 321 | 190 | 430 | 120 | Ringfeder | Request a quote | |
RfN-4071-240x405-190---HT | HT (Half type with threaded holes in thrust ring) | 295 | 190 | 405 | 109 | Ringfeder | Request a quote | |
RfN-4071-360x590-295---HT | HT (Half type with threaded holes in thrust ring) | 432 | 295 | 590 | 162 | Ringfeder | Request a quote | |
RfN-4071-360x590-290---HT | HT (Half type with threaded holes in thrust ring) | 432 | 290 | 590 | 162 | Ringfeder | Request a quote | |
RfN-4071-360x590-280---HT | HT (Half type with threaded holes in thrust ring) | 432 | 280 | 590 | 162 | Ringfeder | Request a quote | |
RfN-4071-350x580-285---HT | HT (Half type with threaded holes in thrust ring) | 432 | 285 | 580 | 162 | Ringfeder | Request a quote | |
RfN-4071-350x580-280---HT | HT (Half type with threaded holes in thrust ring) | 432 | 280 | 580 | 162 | Ringfeder | Request a quote | |
RfN-4071-350x580-270---HT | HT (Half type with threaded holes in thrust ring) | 432 | 270 | 580 | 162 | Ringfeder | Request a quote | |
RfN-4071-340x570-270---HT | HT (Half type with threaded holes in thrust ring) | 408 | 270 | 570 | 156 | Ringfeder | Request a quote | |
RfN-4071-360x590-290 | Standard (Standard type) | 432 | 290 | 590 | 162 | Ringfeder | Request a quote | |
RfN-4071-400x680-330 | Standard (Standard type) | 480 | 330 | 680 | 168 | Ringfeder | Request a quote | |
RfN-4071-360x590-295 | Standard (Standard type) | 432 | 295 | 590 | 162 | Ringfeder | Request a quote | |
RfN-4071-380x645-290 | Standard (Standard type) | 458 | 290 | 645 | 168 | Ringfeder | Request a quote | |
RfN-4071-380x645-300 | Standard (Standard type) | 458 | 300 | 645 | 168 | Ringfeder | Request a quote | |
RfN-4071-380x645-310 | Standard (Standard type) | 458 | 310 | 645 | 168 | Ringfeder | Request a quote | |
RfN-4071-390x660-300 | Standard (Standard type) | 468 | 300 | 660 | 168 | Ringfeder | Request a quote | |
RfN-4071-390x660-310 | Standard (Standard type) | 468 | 310 | 660 | 168 | Ringfeder | Request a quote | |
RfN-4071-390x660-320 | Standard (Standard type) | 468 | 320 | 660 | 168 | Ringfeder | Request a quote | |
RfN-4071-400x680-315 | Standard (Standard type) | 480 | 315 | 680 | 168 | Ringfeder | Request a quote | |
RfN-4071-400x680-320 | Standard (Standard type) | 480 | 320 | 680 | 168 | Ringfeder | Request a quote | |
RfN-4071-360x590-280 | Standard (Standard type) | 432 | 280 | 590 | 162 | Ringfeder | Request a quote | |
RfN-4071-350x580-285 | Standard (Standard type) | 432 | 285 | 580 | 162 | Ringfeder | Request a quote | |
RfN-4071-280x460-210 | Standard (Standard type) | 346 | 210 | 460 | 134 | Ringfeder | Request a quote | |
RfN-4071-260x430-210 | Standard (Standard type) | 321 | 210 | 430 | 120 | Ringfeder | Request a quote | |
RfN-4071-260x430-200 | Standard (Standard type) | 321 | 200 | 430 | 120 | Ringfeder | Request a quote | |
RfN-4071-260x430-190 | Standard (Standard type) | 321 | 190 | 430 | 120 | Ringfeder | Request a quote | |
RfN-4071-240x405-190 | Standard (Standard type) | 295 | 190 | 405 | 109 | Ringfeder | Request a quote | |
RfN-4071-240x405-180 | Standard (Standard type) | 295 | 180 | 405 | 109 | Ringfeder | Request a quote | |
RfN-4071-240x405-170 | Standard (Standard type) | 295 | 170 | 405 | 109 | Ringfeder | Request a quote | |
RfN-4071-220x370-170 | Standard (Standard type) | 270 | 170 | 370 | 104 | Ringfeder | Request a quote | |
RfN-4071-220x370-165 | Standard (Standard type) | 270 | 165 | 370 | 104 | Ringfeder | Request a quote | |
RfN-4071-220x370-160 | Standard (Standard type) | 270 | 160 | 370 | 104 | Ringfeder | Request a quote |
