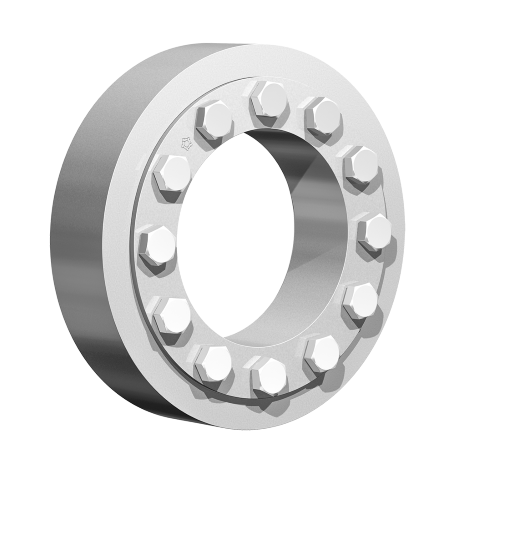

Two-Part Shrink Discs RfN 4181

The RfN 4181 series Two-Part Shrink Discs feature large shaft diameters and high torque with an additional guide mechanism for the inner ring. They are the size-extended version of the Shrink Discs RfN 4161, which can be used for an unlimited range of applications.

These connections are suitable for securing all types of hubs onto shafts and axles providing easy mounting and removal and easy replacement in a short time.

HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.

If you have any questions write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.

1(866)577-4040

Request a quote

Contact Information

Product Information

Qty

Reset

MPN	Title	dg mm	dw mm	d mm	l1 mm	Brand	Price
RfN-4181-220x370-160	Two Part Shrink Disc RfN 4181 220x370 160	20	160	370	103.3	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 220x370 160 MPN: RfN-4181-220x370-160 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-220x370-170	Two Part Shrink Disc RfN 4181 220x370 170	20	170	370	103.3	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 220x370 170 MPN: RfN-4181-220x370-170 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-220x370-180	Two Part Shrink Disc RfN 4181 220x370 180	20	180	370	103.3	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 220x370 180 MPN: RfN-4181-220x370-180 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-240x405-170	Two Part Shrink Disc RfN 4181 240x405 170	20	170	405	108.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 240x405 170 MPN: RfN-4181-240x405-170 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-240x405-180	Two Part Shrink Disc RfN 4181 240x405 180	20	180	405	108.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 240x405 180 MPN: RfN-4181-240x405-180 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-240x405-200	Two Part Shrink Disc RfN 4181 240x405 200	20	200	405	108.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 240x405 200 MPN: RfN-4181-240x405-200 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-260x430-190	Two Part Shrink Disc RfN 4181 260x430 190	20	190	430	115.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 260x430 190 MPN: RfN-4181-260x430-190 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-260x430-200	Two Part Shrink Disc RfN 4181 260x430 200	20	200	430	115.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 260x430 200 MPN: RfN-4181-260x430-200 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-260x430-220	Two Part Shrink Disc RfN 4181 260x430 220	20	220	430	115.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 260x430 220 MPN: RfN-4181-260x430-220 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-280x460-210	Two Part Shrink Disc RfN 4181 280x460 210	20	210	460	133.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 280x460 210 MPN: RfN-4181-280x460-210 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-280x460-220	Two Part Shrink Disc RfN 4181 280x460 220	20	220	460	133.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 280x460 220 MPN: RfN-4181-280x460-220 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-280x460-240	Two Part Shrink Disc RfN 4181 280x460 240	20	240	460	133.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 280x460 240 MPN: RfN-4181-280x460-240 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-300x485-220	Two Part Shrink Disc RfN 4181 300x485 220	24	220	485	139.1	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 300x485 220 MPN: RfN-4181-300x485-220 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-300x485-230	Two Part Shrink Disc RfN 4181 300x485 230	24	230	485	139.1	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 300x485 230 MPN: RfN-4181-300x485-230 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-300x485-250	Two Part Shrink Disc RfN 4181 300x485 250	24	250	485	139.1	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 300x485 250 MPN: RfN-4181-300x485-250 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-340x570-250	Two Part Shrink Disc RfN 4181 340x570 250	24	250	570	152.5	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 340x570 250 MPN: RfN-4181-340x570-250 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-340x570-260	Two Part Shrink Disc RfN 4181 340x570 260	24	260	570	152.5	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 340x570 260 MPN: RfN-4181-340x570-260 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-340x570-280	Two Part Shrink Disc RfN 4181 340x570 280	24	270	570	152.5	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 340x570 280 MPN: RfN-4181-340x570-280 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-360x590-270	Two Part Shrink Disc RfN 4181 360x590 270	24	270	590	167.7	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 360x590 270 MPN: RfN-4181-360x590-270 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-360x590-280	Two Part Shrink Disc RfN 4181 360x590 280	24	280	590	167.7	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 360x590 280 MPN: RfN-4181-360x590-280 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-360x590-300	Two Part Shrink Disc RfN 4181 360x590 300	24	300	590	167.7	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 360x590 300 MPN: RfN-4181-360x590-300 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-390x650-290	Two Part Shrink Disc RfN 4181 390x650 290	30	290	650	167.6	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 390x650 290 MPN: RfN-4181-390x650-290 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-390x650-300	Two Part Shrink Disc RfN 4181 390x650 300	30	300	650	167.6	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 390x650 300 MPN: RfN-4181-390x650-300 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-390x650-320	Two Part Shrink Disc RfN 4181 390x650 320	30	320	650	167.6	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 390x650 320 MPN: RfN-4181-390x650-320 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-440x740-340	Two Part Shrink Disc RfN 4181 440x740 340	27	340	740	195.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 440x740 340 MPN: RfN-4181-440x740-340 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-440x740-350	Two Part Shrink Disc RfN 4181 440x740 350	27	350	740	195.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 440x740 350 MPN: RfN-4181-440x740-350 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-440x740-370	Two Part Shrink Disc RfN 4181 440x740 370	27	370	740	195.9	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 440x740 370 MPN: RfN-4181-440x740-370 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-480x800-380	Two Part Shrink Disc RfN 4181 480x800 380	30	380	790	225	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 480x800 380 MPN: RfN-4181-480x800-380 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-480x800-390	Two Part Shrink Disc RfN 4181 480x800 390	30	390	790	225	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 480x800 390 MPN: RfN-4181-480x800-390 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-480x800-410	Two Part Shrink Disc RfN 4181 480x800 410	30	410	790	225	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 480x800 410 MPN: RfN-4181-480x800-410 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-560x940-450	Two Part Shrink Disc RfN 4181 560x940 450	30	450	940	240	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 560x940 450 MPN: RfN-4181-560x940-450 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-560x940-460	Two Part Shrink Disc RfN 4181 560x940 460	30	460	940	240	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 560x940 460 MPN: RfN-4181-560x940-460 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-560x940-480	Two Part Shrink Disc RfN 4181 560x940 480	30	480	940	240	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 560x940 480 MPN: RfN-4181-560x940-480 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-590x960-470	Two Part Shrink Disc RfN 4181 590x960 470	30	470	960	361	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 590x960 470 MPN: RfN-4181-590x960-470 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-590x960-480	Two Part Shrink Disc RfN 4181 590x960 480	30	480	960	361	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 590x960 480 MPN: RfN-4181-590x960-480 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
RfN-4181-590x960-500	Two Part Shrink Disc RfN 4181 590x960 500	30	500	960	361	Ringfeder	Request a quote	Two Part Shrink Disc RfN 4181 590x960 500 MPN: RfN-4181-590x960-500 Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections ar... View product details Availability: Request a quote
