Rosta Oscillating Mountings AB

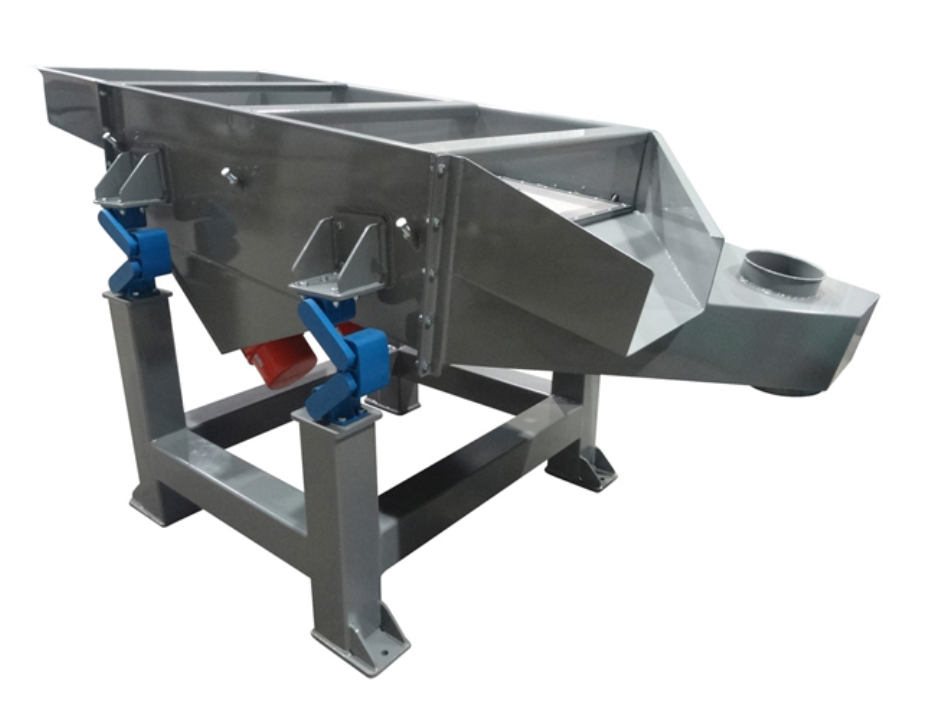

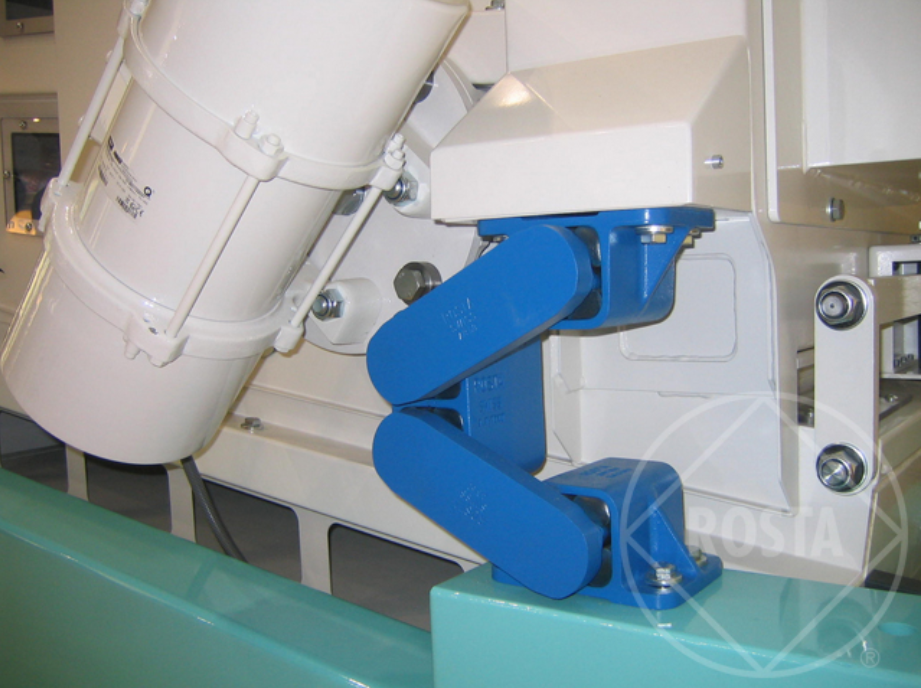

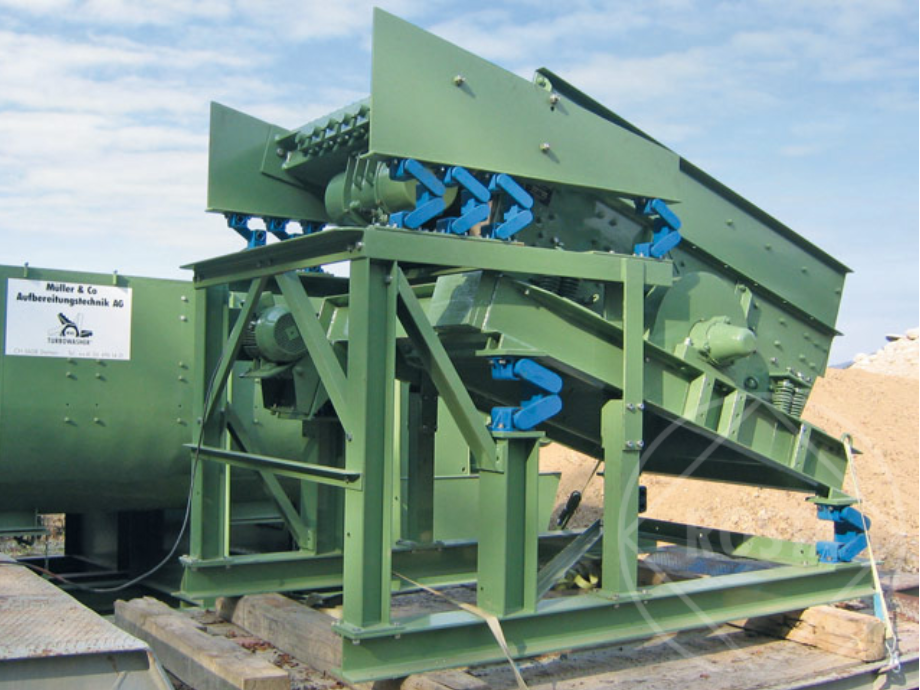

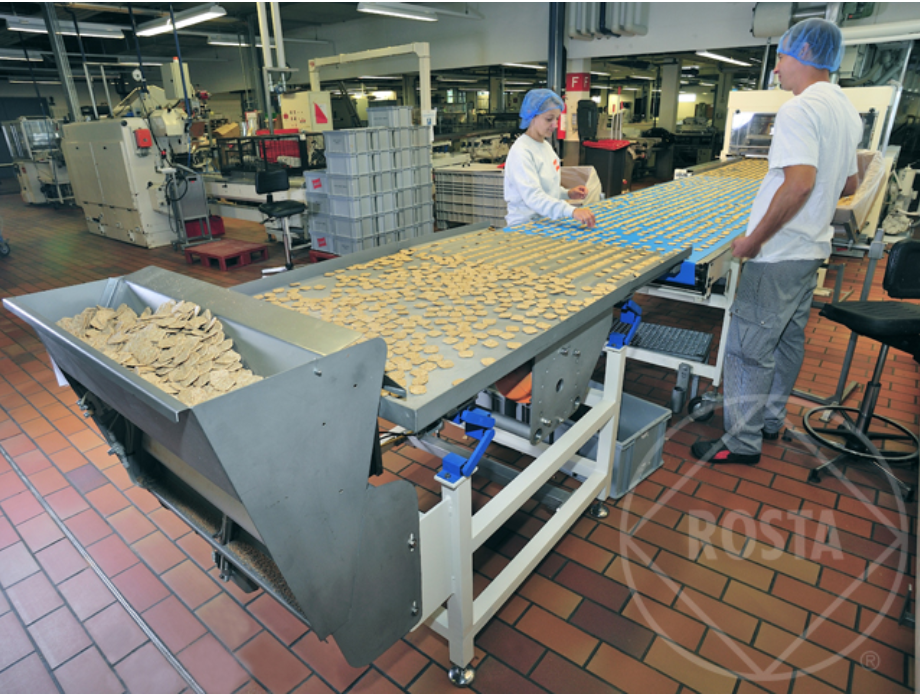

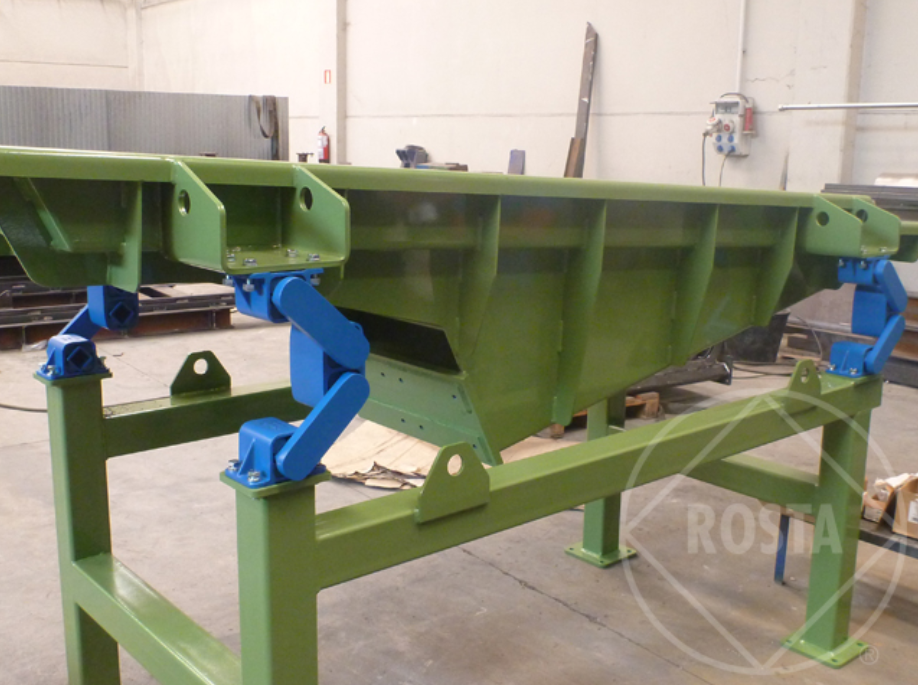

AB type of Oscillating Mountings are maintenance-free elastic rockers for the support or suspension of freely oscillating vibrating equipment with a wide variety of designs and drive systems.
The pantograph structure of the oscillating mounting assumes large elastic departure under load making low natural frequencies (down to approx. 2.2 Hz) and hence exceptionally high insulation efficiency towards the support structure. The great lateral stability of screen casing typical of helical spring mounting on passing through the resonant frequency.
MPN: 07 051 056

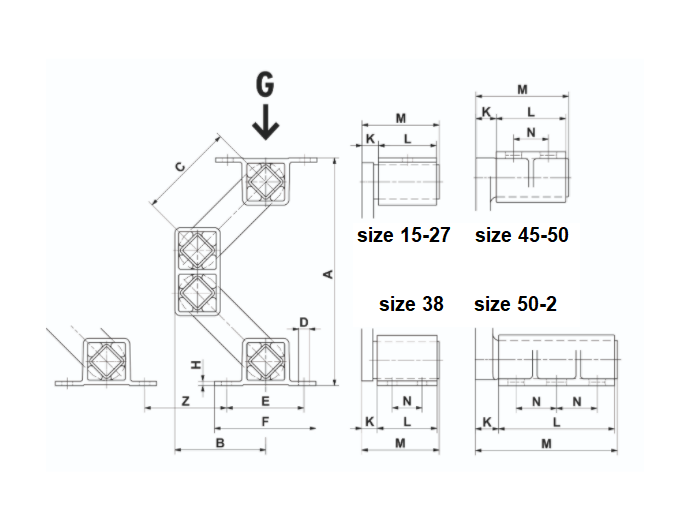

Specifications
| Weight (kg) | 0.5 |
| M | 52 |
| L | 40 |
| K | 10 |
| H | 3 |
| A | 168 |
| Load capacity G (N) | 50 - 160 |
| Type | AB 15 |
| Natural frequency Gmin - Gmax (Hz) | 4.0 - 2.8 |
| B | 70 |
| A max. load | 114 |
| B max. load | 88 |
| C | 80 |
| D | ø7 |
| E | 50 |
| F | 65 |
| Z | 65 |
