Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
RLK 133 TC 160 x 210 Cone Clamping Elements by RINGSPANN
Ringspann RLK 133 TC-160 x 210 type of Cone Clamping Element centers the hub to the shaft featuring short axial width. They have no axial displacement between hub and shaft during clamping procedure due to fixed backstop point. You can download the product's 3D model below.
MPN: 4204-160301-TC0000
Specifications
| weight kg | 6 |
| clamping screw length mm | 40 |
| clamping screw size | M 14 |
| clamping screw number | 11 |
| clamping screw tightening torque ms nm | 229 |
| contact pressure at hub pn nmm2 | 140 |
| contact pressure at shaft pw nmm2 | 184 |
| transmissible torque or axial force f kn | 380 |
| transmissible torque or axial force m nm | 30000 |

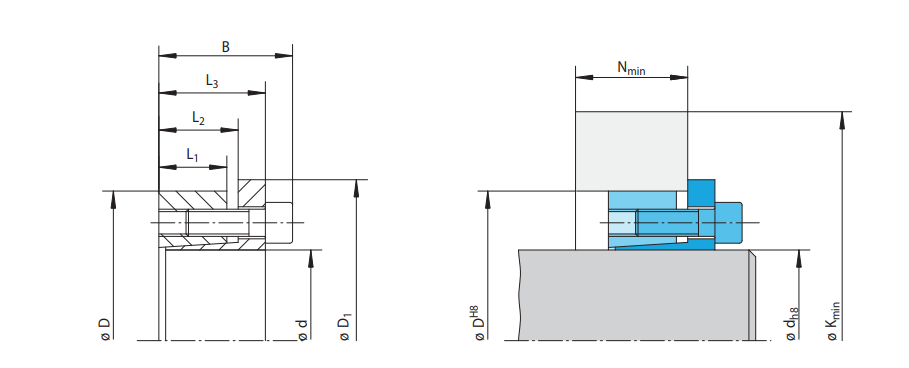

| l3 mm | 54 |
| l2 mm | 40 |
| l1 mm | 34 |
| b mm | 68 |
| d1 mm | 219 |
| d mm | 210 |
| type | RLK 133 TC-160 x 210 |
