Thomson

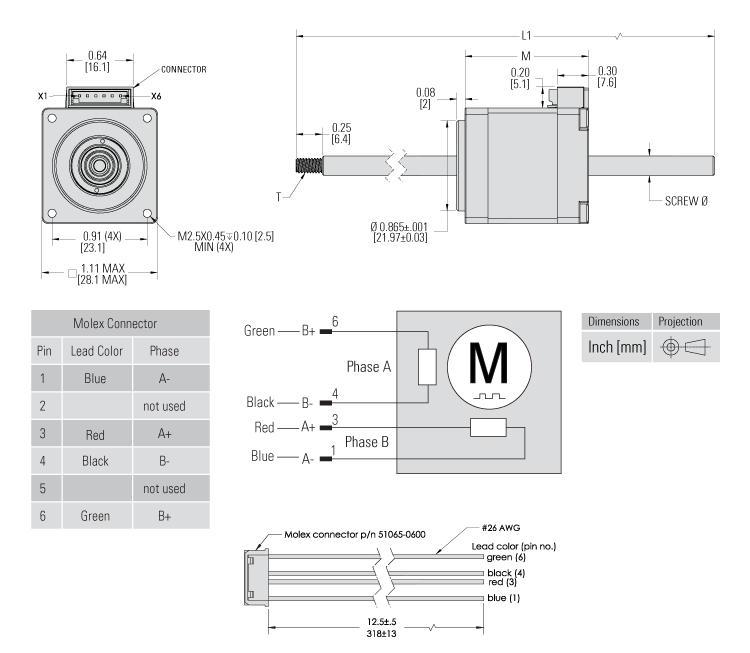

MLN11A05-180050S04000N-C1A0-XXX - Stepper Motor Linear Actuator

MLN11A05-180050S04000N-C1A0-XXX linear actuator combines a hybrid stepper motor and a precision lead screw in one compact envelope. The open architecture rotating screw and rotating nut motorized lead screws suit applications where external guidance is present or a high level of design flexibility is required, while the closed assembly of the motorized lead screw actuator is ideal to further simplify the design process and remove requirements for external guidance.

MPN: MLN11A05-180050S04000N-C1A0-XXX

Quantity

Request a quote

call_small Call: 1(866)577-4040

Specifications


humidity max 0.85
inductance 5.22 mH
concentricity of mounting pilot to shaft tir 0.003 in
current per phase 0.51 A
dielectric strength 500 VAC for 1 minute
magnet wire insulation Class B 266 °F
motor end play 0.002 in @ 2 lb
motor frame size NEMA 11
motor insulation resistance 100 Mohm @ 500 VDC
motor radial play max 0.001 in @ 1 lb
perpendicularity of shaft to mounting face tir 0.003 in
power draw 1.96 W
resistance 7.54 Ω
screw standard coating No Coating
series Rotating Nut
stack type Single Stack
temperature max 125 °F
temperature min 15 °F
temperature case max 140 °F
temperature storage -4 to 122 ºF
voltage per phase 3.85 Vdc
