Ringspann Two Part Shrink Disc RLK 606 62
Two-part RLK 606 series of shrink discs with high torque capacity, which ensure easy and quick assembly by tightening clamping screws without a torque wrench. These shrink discs can provide a backlash-free connection of a bevel spur gear to a gearbox drive shaft. This connection permits extended reversing operations. You can download the product's 3D model below
MPN: 4200-062601-000000
Specifications

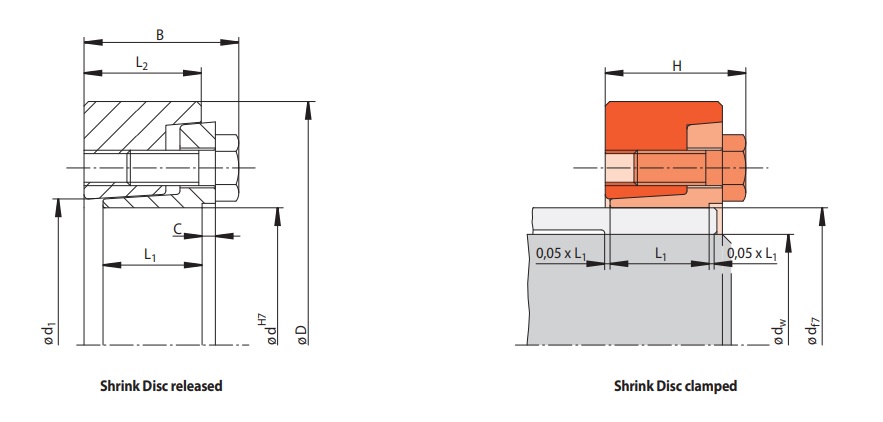

| b mm | 34.5 |
| d mm | 62 |
| d1 mm | 66 |
| l1 mm | 24.5 |
| l2 mm | 27 |
| c mm | 1.5 |
| h mm | 32.3 |
| clamping screws number | 9 |
| clamping screws size | M 8 |
| clamping screws length mm | 20 |
| weight kg | 1.5 |
| type | RLK 606-62 |
