Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.

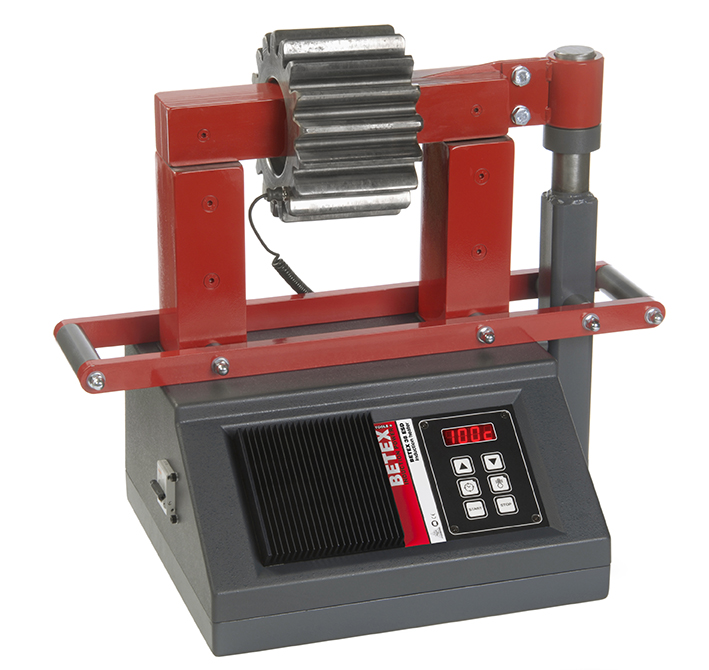

Betex Bearing Induction Heater, 150kg 400V
Betex Bearing Induction Heaters, 400V with the unique Betex swing arm construction and support for horizontal and vertical heating. The product maximum temperature is 2400 C (optional till 3500 C).
Bearing dimensions include:
Min. inside diameter: 30/110 Ø
Max. outside diameter: 500/720 mm
Max. width: 200 mm
Max. weight: 150 kg.
MPN: 310630
Specifications
thermal protection | Yes |
autom. Demagnetization, <2A/cm2 | Yes |
magnetic probe | Yes |
Mpn | 310630 |
frequency Hz | 50/60 |
display | Yes |
swing arm | Yes |
voltage/Amp | 2~ 400V/20A |
weight kg | 53 |
facility power standard 230V | 8kVA |
