Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Rosta Anti-Vibration Mounts ESL

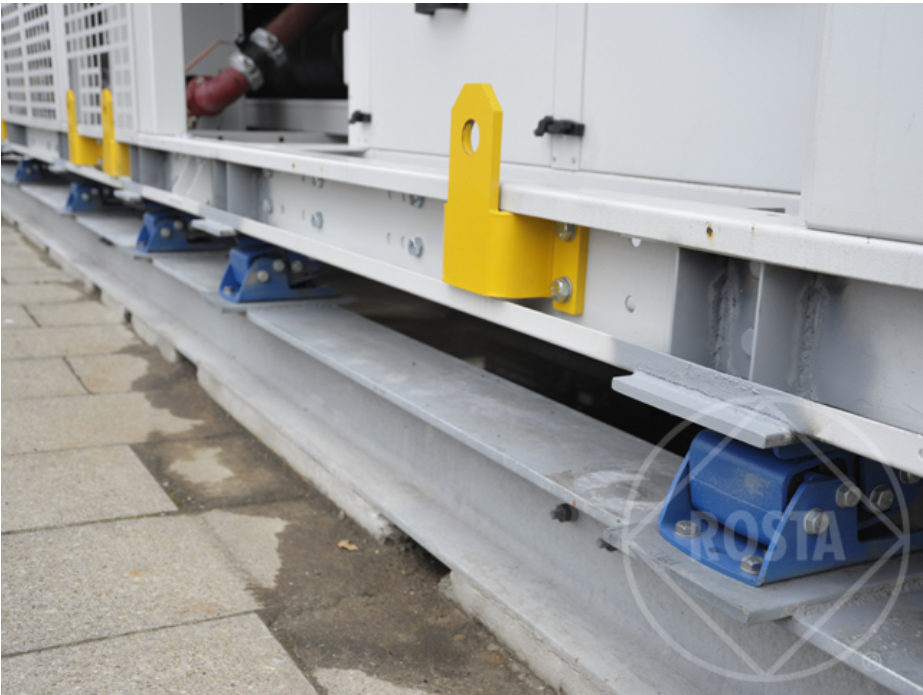

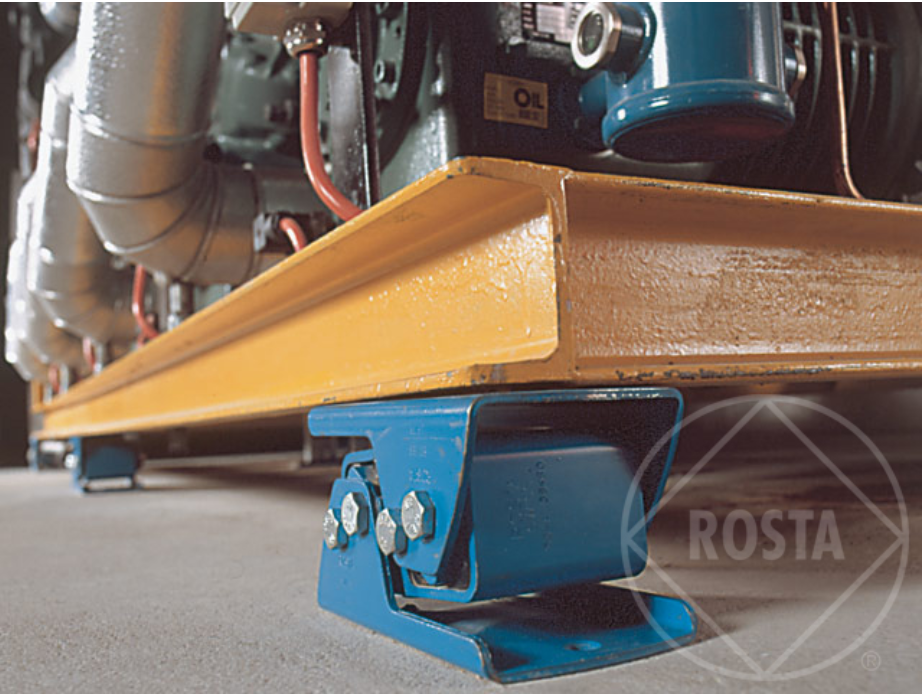

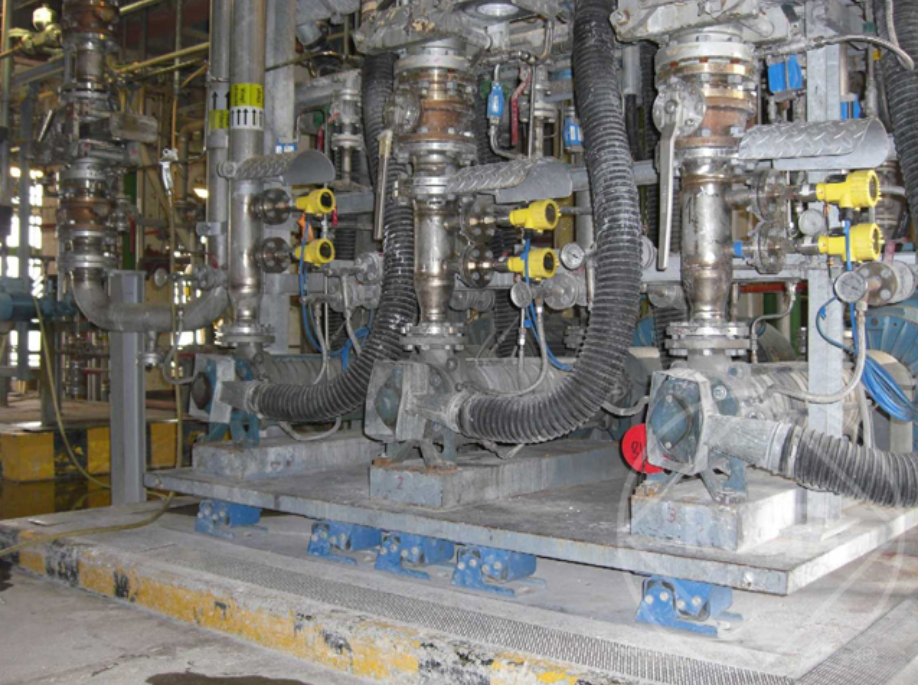

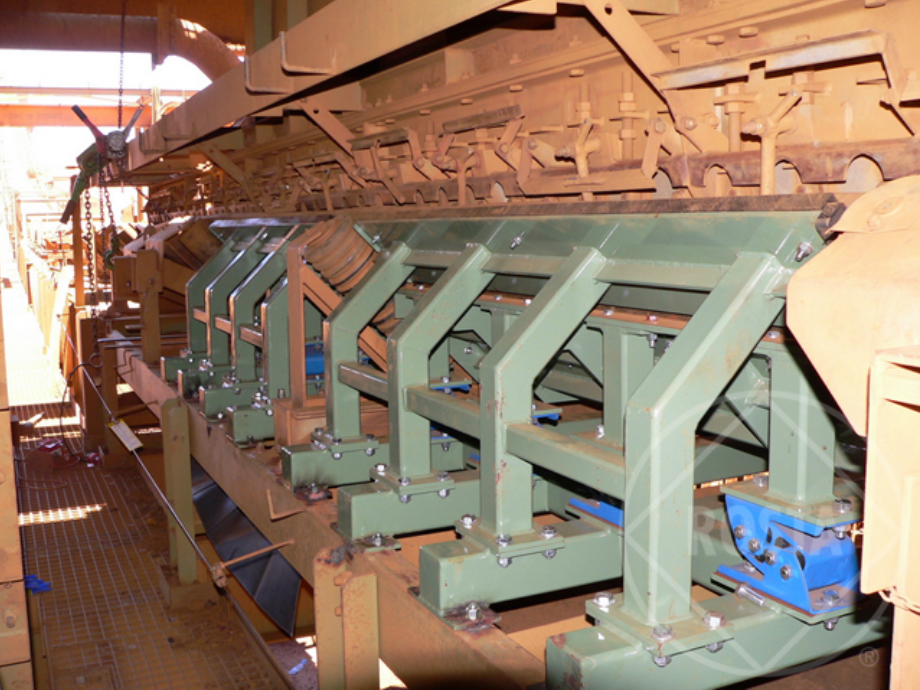

ESL type of Anti-Vibration Mounts are designed to accept compression, tension, shear and combined loadings. The mounts are intended for the absorption of low and medium vibrations. They can be installed in any desired position, even on ceiling and walls.
Due to the mechanically secured principle of ESL anti-vibration mounts, no tearing off is possible. The following elements are maintenance free, insensitive to water, dirt and highly suitable for temperatures from -40°C to +80°C.
The housing and core of the elements up to size 45 are made of light alloy with steel brackets. The housing of size 50 is made of GGG 40. All elements are paint-finished.
MPN: 05 021 001
Specifications
| Weight (kg) | 0.4 |
| x*max | 1.5 |
| P | - |
| O | - |
| Type | ESL 15 |
| N | 58.5 |
| Load capacity G (N) | 200 - 550 |
| Natural frequency Gmin - Gmax (Hz) | 8.2 - 5.8 |
| A | 54 |
| A max. load | 43 |
| E | 65 |
| C | 49 |
| B | 85 |
| øF | 7 |
| D | 10 |
| H | 91 |
| J | 2 |
| K | 5.5 |
| L | 25.5 |
| M | 40 |
