Rosta Anti-Vibration Mounts AWI
AWI type of Anti-Vibration Mounts are intended for the absorption of medium and low frequency vibrations. The AWI elements are used in pairs (type L and R) in most applications and provide good linear guidance of the vibrating machine part.
The AWI mount elements maintenance free, resistant to water and dirt, suitable for the temperatures from 40°C to +80°C.
The housing and inner parts of anti-vibration mounts are made from stainless steel.
MPN: 05 111 101

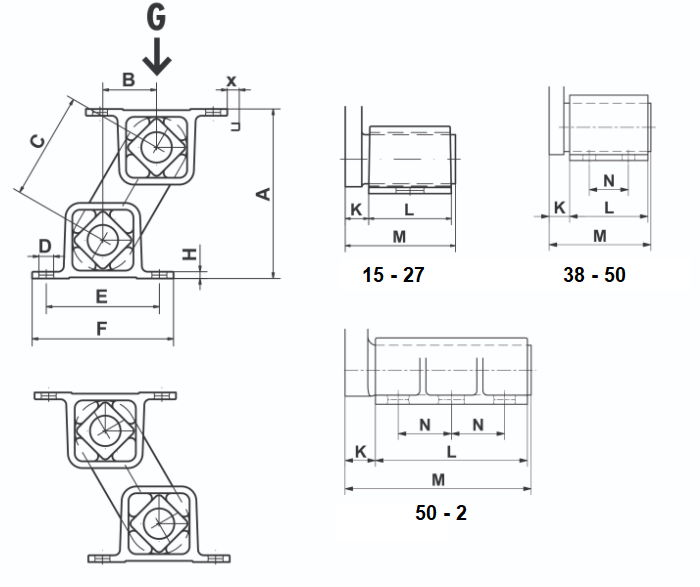

Specifications
| K | 10 |
| H | 3 |
| øF | 65 |
| E | 50 |
| D | 7 x 10 |
| C | 45 |
| B | 22.5 |
| max. load | 55 |
| unloaded | 68 |
| Load capacity G (N) on Z-axis | 180 - 400 |
| Type | AWI 15R |
| L | 40 |
| M | 52 |
| N | - |
| Mass (kg) | 0.2 |
